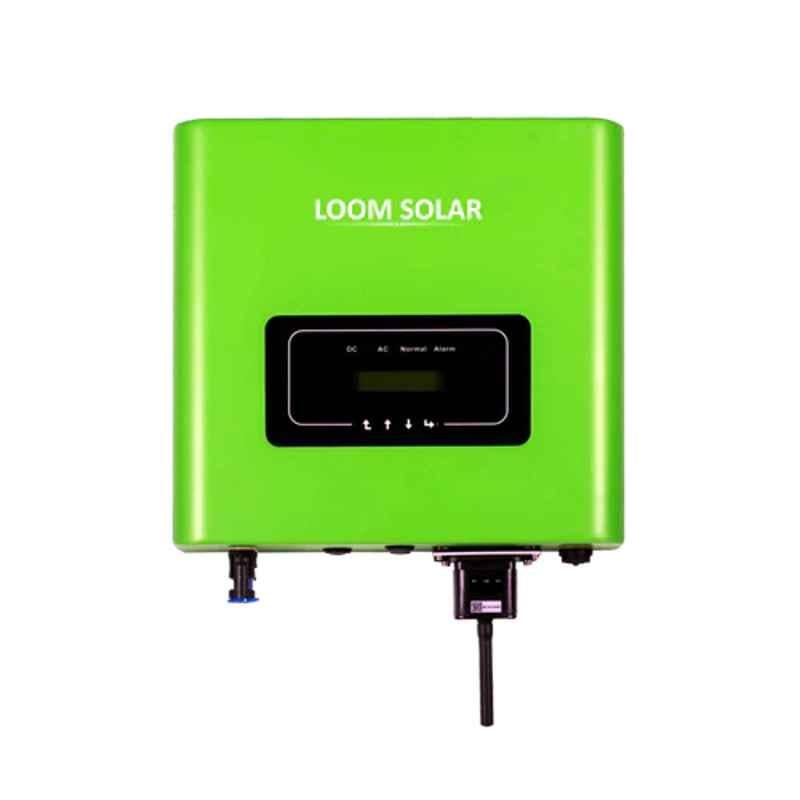

Loom Solar 4kW On Grid Solar Inverter, Fusion 41

Visit the Store

(0 reviews)

Brand: Loom Solar

Wide Input Range & Natural Cooling, Remote Monitoring & Mobile App Monitoring, Simple & Compact & Low Power Transmission, Compact & Light Design For E...

₹ 30 - 72 Thousand*

Key Specifications

standard:

Safety: IEC 62109-1&2, EMC: IEC61000-6-1,6-3 & IEC 61000-3-11, 3-12

efficiency:

Max. Conversion: 97.5 %, Max. Euro: 97 %, Max. MPPT: >99 %

short circuit current (isc):

27+27 Amp

voltage:

Rated Grid: 230 V, Operating Grid: 184-277 V, Min. Start: 70 V, MPPT Tracking: 50-500 V

frequency:

50 Hz

thd:

< 5 %

protection class:

IP65

current:

MPPT I/P: 20+20 Amp

display type:

LCD

noise level:

< 30 dBA

warranty:

5 Years

model:

Fusion 41

power:

4 kW

communication:

Interface: Wifi/GPRS/RS 485/RS 232/Ethernet LAN

operating temperature:

-25 to 60 deg C

additional details:

Phase: Single, Maximum Solar Panel Connection: 4200 W, Topology: Transformerless, Number of MPPT: 2
