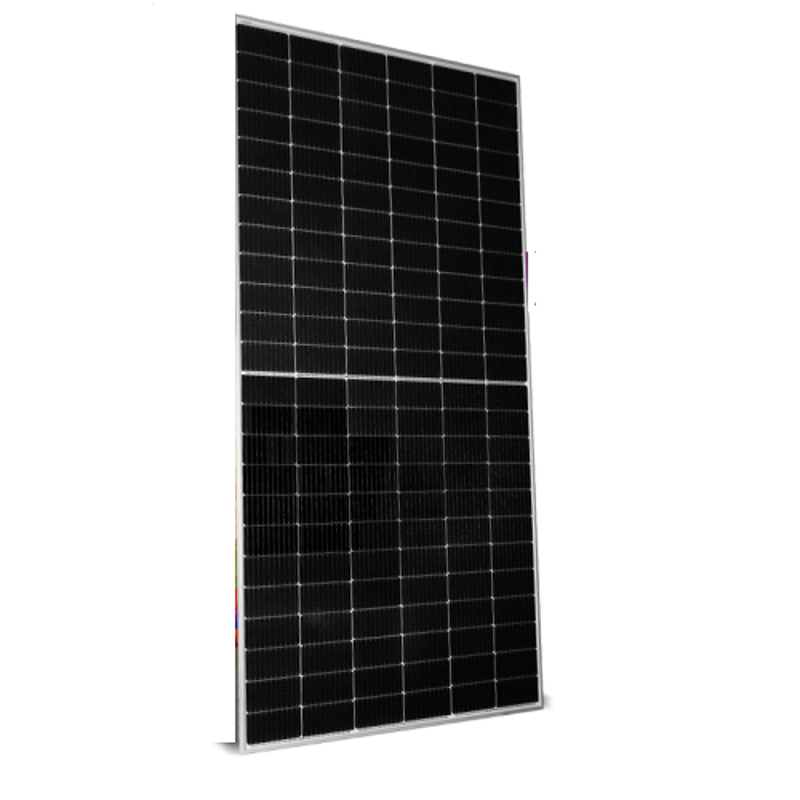

Adani 540W 144 Cells Polycrystalline Solar Panel, ASM-M10-144-AAA
Visit the Adani Green Store
Adani Green![[object Object]](https://solar-station.s3.ap-south-1.amazonaws.com/1729325215138-adani-re.png "[object Object]")
(0 reviews)
Brand: Adani
Grid Pattern Current Path & Lower Cost, Excellent Low Light Performance & PID Resistance, Excellent Anti Micro Cracking Performance with More Balanced...
₹ 23 - 29 Thousand*
Key Specifications
safety application class:
A cables:
Length: 300 mm rated power:
540 W temperature coefficient:
Coefficient Power: -0.35% deg C open circuit voltage (voc):
49.32 V short circuit current (isc):
13.84 Amp current at max power (imp):
12.91 Amp protection class:
Junction Box: IP68 maximum system voltage:
1500 V voltage at max power (vmp):
41.80 V number of cells:
144 nominal operating cell temperature:
44 ± 2 deg C rated power range:
401-800 W item code:
ASM-M10-144-AAA operating temperature:
-40 to 85 deg C panel type:
Polycrystalline fuse rating:
25 Amp module efficiency:
21.03%
