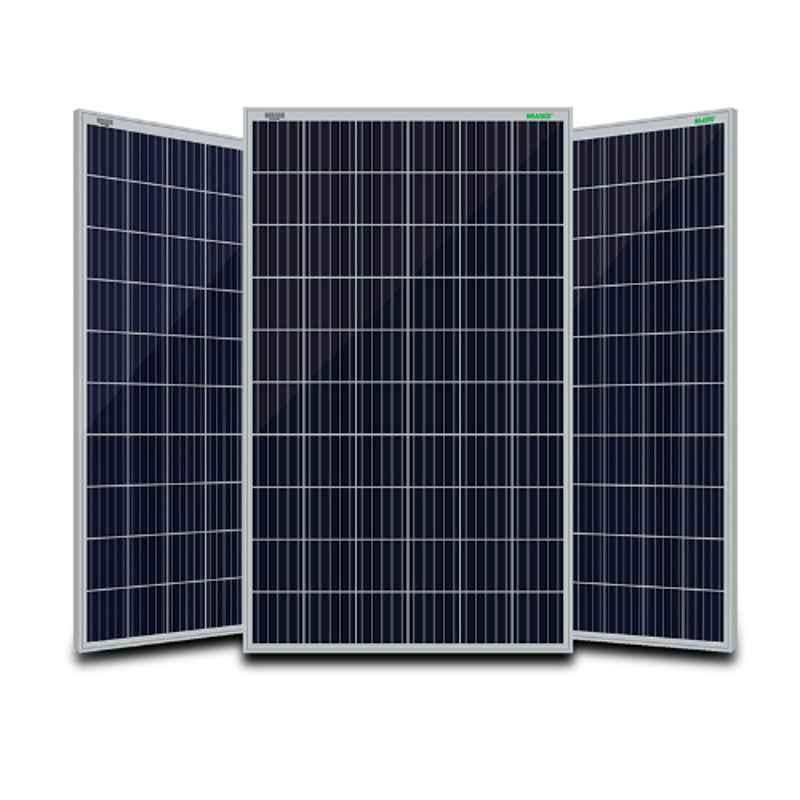

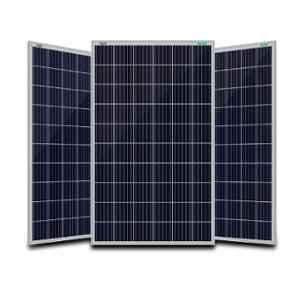

Waaree Aditya 335W 24V Polycrystalline Solar PV Module Panel, WS-335
Visit the Waaree Energies Store
Waaree Energies![[object Object]](https://solar-station.s3.ap-south-1.amazonaws.com/1729325335923-waaree-energies-logo.png "[object Object]"){kind=logo}
(0 reviews)
Brand: Waaree
Easy Installation, Micro-Cracks are Kept to a Minimum, Lower BOS Cost & Higher Power Output, Simplified Wire Fix & Reduced Cable Energy Loss, Improved...
₹ 11 - 15 Thousand*
Key Specifications
rated power:
335 W thickness:
Front: 3.2 mm, Frame: 40 mm temperature coefficient:
Power: -0.3859%/deg C, Voltage: -0.2775%/deg C, Current: 0.051%/deg C open circuit voltage (voc):
48.80 V short circuit current (isc):
9.30 Amp voltage at max power (vmp):
38.10 V warranty:
Performance: 25 Years, Product: 10 Years rated power range:
101-400 W fuse rating:
Series: 16 Amp cables:
Length: 1200 mm certification and approval:
ISO 9001:2015, ISO 14001:2015 & ISO 45001:2018 junction box:
Weatherproof PPO weight:
22.5 kg cell arrangement:
12x6 coating type:
Glass: ARC current at max power (imp):
8.80 Amp voltage:
1500 V standards:
IEC 61215, IEC 61730, UL61730, IEC TS 62804-1, IEC 62716, IEC -60068-2-68, IEC TS 62782 & IEC 61701 protection class:
Connector: IP68, Junction Box: IP67/IP68 connector:
MC4 series:
Aditya number of cells:
72 nominal operating cell temperature:
46 ±2 deg C item code:
WS-335 frame material:
Anodized Aluminium Alloy operating temperature:
-40 to 85 deg C nominal voltage:
24 V panel type:
Polycrystalline encapsulate:
PID Free & UV Resistant module efficiency:
0.17 dimensions:
1985x1003x40 mm
