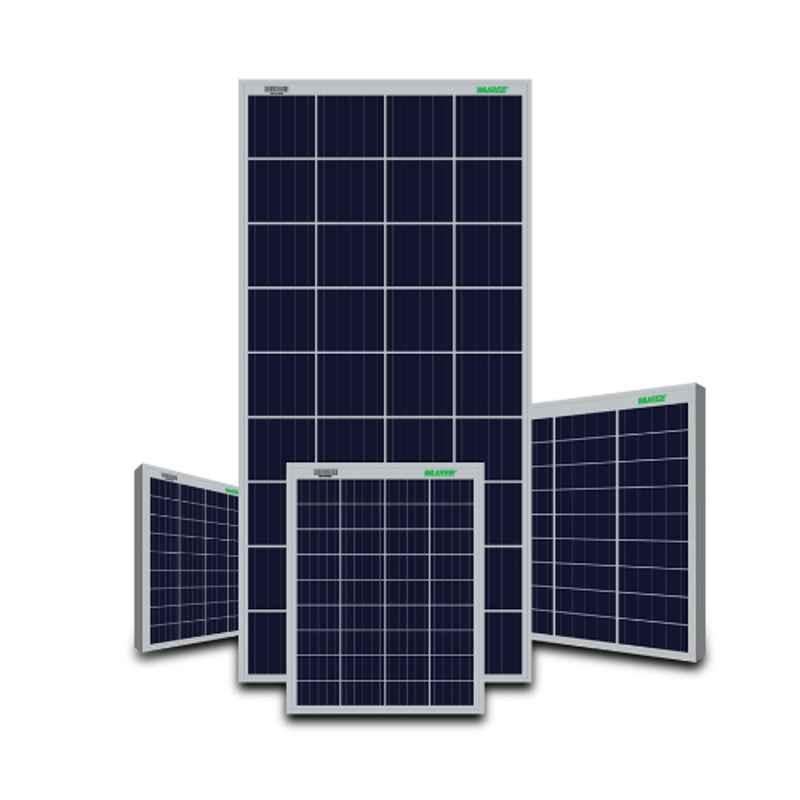

Waaree Arun 75W 12V Polycrystalline Solar PV Module Panel, WS-75

Visit the Store

(0 reviews)

Brand: Waaree

Ideal for On/Off-Grid Applications, High Durability & Salt Mist Resistant, Excellent Performance in Low Light, Superior Module Efficiency as per Inter...

₹ 3 - 3 Thousand*

Key Specifications

mounting holes pitch:

Mounting Holes Pitch (y): 450 mm

rated power:

75 W

suitable for:

Mobile Solar System, Solar Street Light & Lantern

thickness:

Front: 3.2/4 mm

temperature coefficient:

Power: -0.3859%/deg C, Voltage: -0.2775%/deg C, Current: 0.051%/deg C

open circuit voltage (voc):

21.72 V

short circuit current (isc):

4.6 Amp

current:

4.33 Amp

voltage at max power (vmp):

17.34 V

warranty:

Performance: 25 Years, Product: 10 Years

rated power range:

0-100 W

fuse rating:

Series: 12 Amp

certification and approval:

ISO 9001:2015, ISO 14001:2015 & ISO 45001:2018

junction box:

Weatherproof PPO with Bypass Diodes

weight:

8 kg

cell arrangement:

9x4

current at max power (imp):

4.33 Amp

voltage:

600-1000 V, Rated: 17.34 V

standards:

IS 14286, IS/IEC 61730-1&2, IEC 61701, IEC 62804 & UL1703

protection class:

Junction Box: IP65

series:

Arun

number of cells:

nominal operating cell temperature:

46 ±2 deg C

item code:

WS-75

frame material:

Anodized Aluminium Alloy

operating temperature:

-40 to 85 deg C

nominal voltage:

12 V

panel type:

Polycrystalline

encapsulate:

Ethylene Vinyl Acetate

module efficiency:

0.1235

dimensions:

900x675x35 mm
