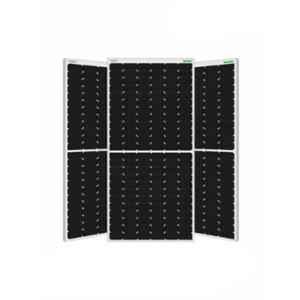

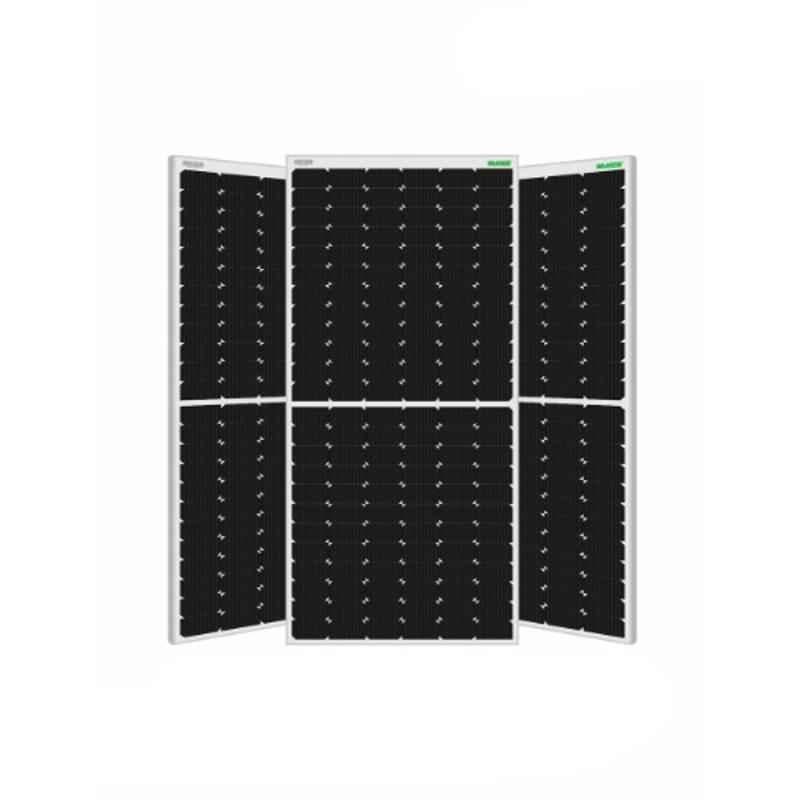

Waaree Bi-33-445 445W 144 Cells Mono PERC Bifacial Solar Module

Visit the Store

(0 reviews)

Brand: Waaree

Split Junction Box, M6 Mono Perc Cells, Pid Resistant with Long Term Viability, Reduced Power Losses Upto 1/4 Times, Better Performance Under All Clim...

₹ 19 - 19 Thousand*

Key Specifications

rated power:

445 W

short circuit current (isc):

11.46 Amp

open circuit voltage (voc):

50.10 V

cell size:

83x166 mm

current at max power (imp):

10.77 Amp

protection class:

Junction Box, Cable & Connector: IP68

voltage at max power (vmp):

41.81 V

maximum system voltage:

1500 V

number of cells:

144

rated power range:

401-800 W

model:

Bi-33-445

frame material:

Anodized Aluminium Alloy

operating temperature:

-40 to 85 deg C

encapsulate:

PID Free & UV Resistant

additional details:

Power Output: 518W at 15%, 540W at 20%, 563W at 25% & 585W at 30%

fuse rating:

25 Amp

panel type:

Mono PERC

module efficiency:

15% at 23.81%, 20% at 24.84%, 25% at 25.88% & 30% at 26.91%
